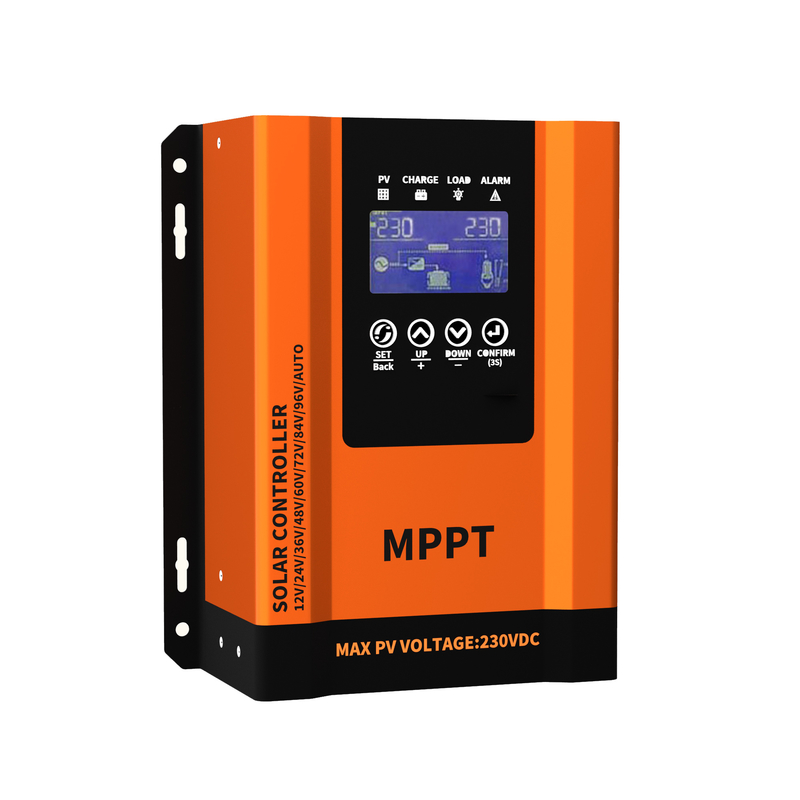

MPPT Solar Controller 30A 40A 50A 60A for RV Boat Home Systems

MPPT Solar Controller 30A 40A 50A 60A for RV Boat Home Systems

Nama merek:	SZSSTH
Nomor Model:	SSTH-30
MOQ:	1 pieces
harga:	$55-77/pieces
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemampuan Penyediaan:	5000 piece/month

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Place of Origin:

Guangdong, China

Sertifikasi:

CE RHOS BSI

Dokumen:

12V~96V MPPT controller spe...on.pdf

Type:

MPPT

Max PV Power:

auto tracking the max power

Rated Current:

30/40/50/60A

MPPT efficiency:

97%

Protection level:

IP 21

Charge mode:

MPPT automatic Max power tracking

Packaging Details:

color box

Menyoroti:

MPPT solar controller for RV

40A MPPT solar charger

60A solar controller for boats

Deskripsi Produk

Smart MPPT Solar Controller 30A 40A 50A 60A

High-performance MPPT solar charge controller designed for off-grid solar systems in homes, cabins, RVs, boats, and telecom sites. Supports multi-voltage battery systems and offers comprehensive protections for long-term, reliable operation.

Key Features

Attribute	Value
Type	MPPT
Max PV Power	Auto tracking the max power
Rated Current	30/40/50/60A
MPPT efficiency	97%
Protection level	IP 21
Charge mode	MPPT automatic Max power tracking

Key Advantages

Advanced MPPT with 99% Tracking Efficiency - intelligently extracts up to 30% more energy than PWM and auto-optimizes under sunny/cloudy conditions.
Wide Battery & System Compatibility - works with 12V/24V/36V/48V systems; supports sealed/GEL/flooded lead-acid and LiFePO4 (optional); PV input up to 100V DC for series panels.
Smart Battery Management - 4-stage charging (bulk/absorption/float/equalization) helps extend battery life by up to 200% with temperature compensation (-20°C ~ 60°C).
Military-Grade Protection - triple reverse-polarity (PV/battery/load), 4000V lightning surge, and over-current/short-circuit/overheat with auto-recovery.
User-Friendly Operation - 3.2″ LCD real-time data (PV V / charge A / battery temp), dual USB 5V/3A, optional Bluetooth/WiFi app monitoring.

Technical Specifications

Controller Type	MPPT (Maximum Power Point Tracking)
Rated Current	30A / 40A / 50A / 60A
System Voltage	12V / 24V / 36V / 48V (auto recognition)
PV Input Voltage	Up to 100V DC (Voc)
Supported Batteries	Sealed / GEL / Flooded Lead-acid; Lithium (LiFePO4 optional)
Charging Stages	Bulk, Absorption, Float, Equalization
Temp Compensation	-20°C to 60°C
Protections	Reverse polarity (PV/Batt/Load), 4000V surge, OCP, short circuit, over-temp (auto recovery)
Display & I/O	3.2″ LCD; Dual USB 5V/3A
Connectivity	Optional Bluetooth / WiFi for app monitoring
Typical Applications	Off-grid homes, RVs, boats, cabins, telecom, security, street lights
Certifications	CE / ROHS / FCC

System Compatibility & Sizing Tips

Ensure PV Voc (at lowest ambient temperature) does not exceed 100V DC.
Match controller current rating (30A/40A/50A/60A) to array current with ~15-25% headroom.
Confirm battery type profile (lead-acid/LiFePO4) in settings before first charge.

What's Included

MPPT Solar Charge Controller (selected current rating)
Temperature sensor & user manual
Optional: Bluetooth/WiFi module

Frequently Asked Questions

Does it work with lithium batteries?

Yes. It supports lithium profiles; LiFePO4 is recommended. Configure the correct voltage and protection values before charging.

Can I connect panels in series?

Yes, provided the total open-circuit voltage (Voc) stays below 100V DC at the coldest expected temperature.

Is remote monitoring available?

Yes. Add the optional Bluetooth/WiFi module to monitor and log data in the mobile app.
