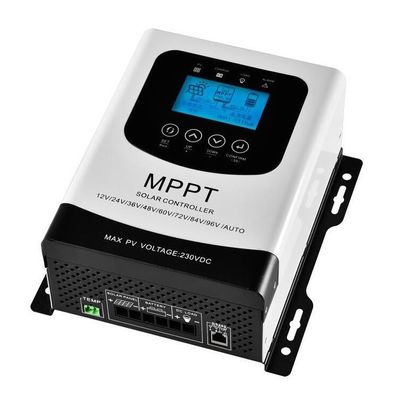

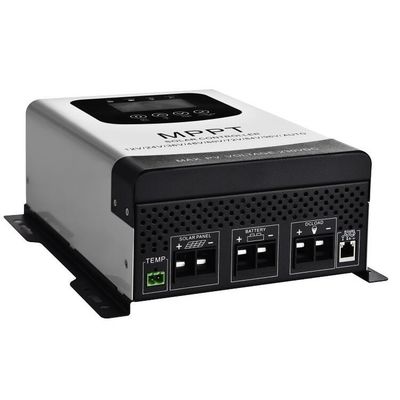

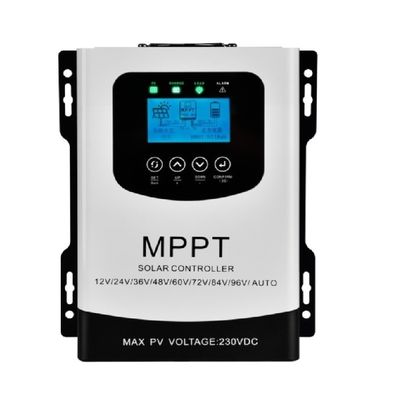

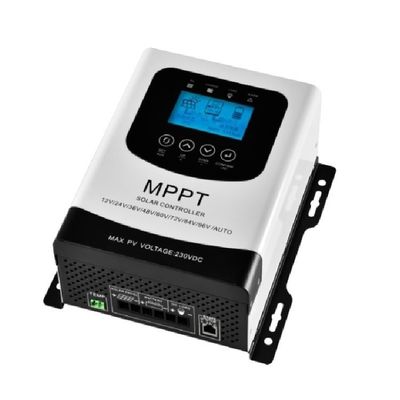

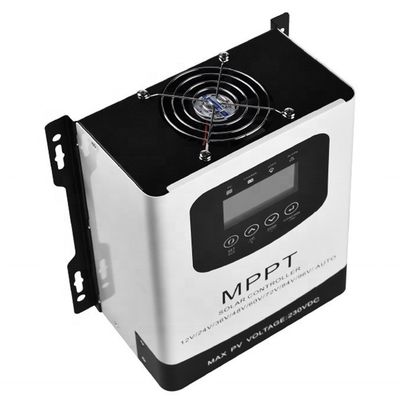

12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking

Nama merek:	SSTH
Nomor Model:	HV 30A, MPPT
harga:	CN¥746.17-1,046.09/pieces

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Jenis:

MPPT

Aplikasi:

Pengontrol Pengisi Daya, Pengontrol Tegangan, Pengontrol Tata Surya

Waktu kerja (h):

24 jam

Max PV Power:

Melacak Otomatis Kekuatan Max

Tegangan PV Maks:

230v

Nama Produk:

Pengontrol Pengisian Tenaga Surya MPPT

Tegangan Dinilai:

12V 24V 36V 48V 60V 72V 84V 96V bekerja otomatis

Arus maksimum:

25A-60A

Efisiensi MPPT:

97%

Mode pengisian daya:

Pelacakan Daya Max Otomatis MPPT

Tegangan masukan rangkaian terbuka PV maks:

0-230v

Menampilkan:

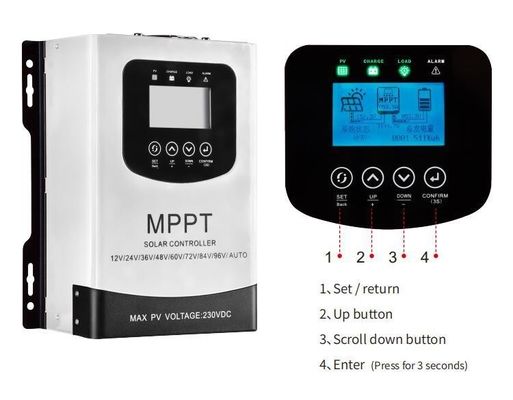

Layar LCD dengan tombol sentuh

Tingkat perlindungan:

IP 21

ketinggian:

0- 3000m

Sertifikat:

Jaminan:

1 tahun

Kemasan rincian:

1 pcs/karton

Menyoroti:

12V-96V MPPT solar charge controller

MPPT solar controller with LCD touchscreen

auto-sensing solar charge controller with warranty

Deskripsi Produk

12V-96V Auto-Sensing MPPT Solar Charge Controller with LCD Touchscreen and Max Power Tracking

Product Description

MPPT Solar Charge Controller

Automatically adjust battery charging and discharging, battery voltage from 12V to 96V
Own advanced tracking algorithm to obtain the maximum power of the solar cell components and charge the battery;
Its low voltage disconnect (LVD) function can prevent the battery from over-discharging and causing damage. The battery charging process of the MPPT controller is optimized to extend battery life and improve system performance.
MPPT solar charge controller have comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures.

Product type	30A / 40A solar charge controller	50A / 60A solar charge controller
Product size	202215100mm	218265100mm
Net weight	1.9 KG	2.6 KG
Box Size	285230128mm	325245128mm
Box gross weight	2.2 KG	3 KG
Qty / Carton	8 Box	4 Box
Carton size	575480290mm	500340272mm
Carton gross weight	18.8 KG	12.8 KG
